LTH300中空型測力傳感器

    LTH300中空型測力傳感器 LTH300中空型測力傳感器 LTH300中空型測力傳感器 LTH300中空型測力傳感器 LTH300中空型測力傳感器

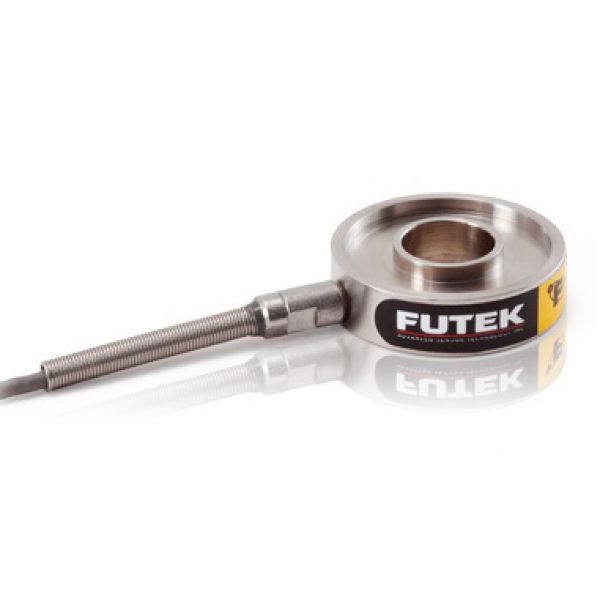

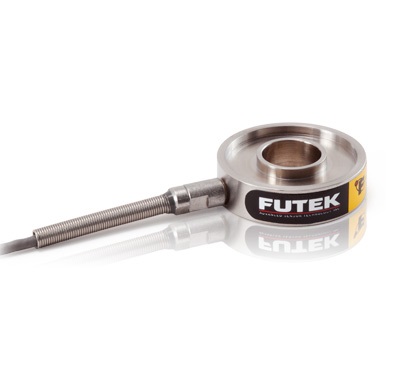

美國FUTEK LTH300中空型測力傳感器

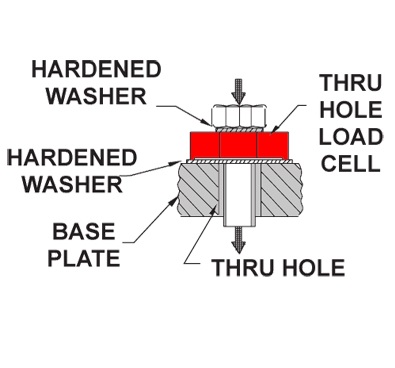

螺栓預緊力傳感器，內徑大小多種選擇，量程寬廣
價 格
備 注
價格包含13%增值稅，若想獲取更多優惠，請聯系我司
LTH300，445至4448N量程可選，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/8"至3/8"內徑尺寸可選，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米

LTH300是一款中空型測力傳感器，它設計用于壓力機或軸向壓力測試的應用場合。標準型號的LTH300測力傳感器的材質為17-4不銹鋼，產品堅固耐用，它的內徑為3.18到9.52mm之間可選。電纜為3米長的29 AWG 4芯特氟龍屏蔽電纜。你也可以根據你的要求選擇相應的傳感器信號輸出接口。

FUTEK的LTH系列中空型測力傳感器具有精度高、剛度好的特點。它的線性度為±0.5%，形變量為0.05mm，工作溫度從–50到93°C。這款標準的LTH300測力傳感器可以根據您的要求進行定制，我們的庫存覆蓋大部分的量程范圍，可以在24小時內發貨。與其他測力傳感器一樣，LTH300在美國生產并采用金屬箔應變計技術。

產品特征：

  • 動態響應頻率快
  • 堅固的電纜出線接頭
  • 低形變
  • 17-4不銹鋼結構
  • 多種量程和內徑大小選擇

規格參數：

性能
量程 222，445，1112，2224，4448 N
線性度 0.5% F.S
遲滯性 0.5% F.S
重復性 0.5% F.S
電氣特性
靈敏度 2 mV/V
激勵電壓 18 V Max
橋路阻值 700 Ohm nom
絕緣電阻 ≥500 MOhm @ 50 VDC
電纜 #29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
機械特性
受力方向 壓向
重量 57 g
過載保護 150% F.S.
形變量 0.025 mm
材質 不銹鋼
保護等級 IP64
環境特性
操作溫度 -50 to 93°C
補償溫度 15 to 72°C
零點溫漂 0.01% of RO/°C
溫度漂移 0.01% of Load/°C
標定
標定電壓 10 VDC
標定（標準） 5點壓向
分流校準阻值 100 kOhm
產品型號
圖片 訂貨編號 版本 描述 價格 數量 規格書 加入購物車
LTH300中空型測力傳感器 FSH04051 222N 3/16" [4.76 mm]內徑 LTH300，222 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/16" [4.76 mm] 內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03969 222N 1/4" [6.35 mm]內徑 LTH300，222 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/4" [6.35 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH04048 222N 5/16" [7.93 mm]內徑 LTH300，222 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，5/16" [7.93 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03963 222N 3/8" [9.53 mm]內徑 LTH300，222 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/8" [9.53 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03970 445N 1/8" [3.18 mm]內徑 LTH300，445 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/8" [3.18 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03968 445N 1/4" [6.35 mm]內徑 LTH300，445 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/4" [6.35 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH04047 445N 5/16" [7.93 mm]內徑 LTH300，445 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，5/16" [7.93 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03962 445N 3/8" [9.53 mm]內徑 LTH300，445 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/8" [9.53 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH04049 1112N 1/4" [6.35 mm]內徑 LTH300，1112 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/4" [6.35 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH04046 1112N 5/16" [7.93 mm]內徑 LTH300，1112 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，5/16" [7.93 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03961 1112N 3/8" [9.53 mm]內徑 LTH300，1112 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/8" [9.53 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH04050 2224N 3/16" [4.76 mm]內徑 LTH300，2224 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/16" [4.76 mm] 內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03967 2224N 1/4" [6.35 mm]內徑 LTH300，2224 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/4" [6.35 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03965 2224N 5/16" [7.93 mm]內徑 LTH300，2224 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，5/16" [7.93 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03960 2224N 3/8" [9.53 mm]內徑 LTH300，2224 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/8" [9.53 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03966 4448N 1/4" [6.35 mm]內徑 LTH300，4448 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，1/4" [6.35 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03964 4448N 5/16" [7.93 mm]內徑 LTH300，4448 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，5/16" [7.93 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
LTH300中空型測力傳感器 FSH03959 4448N 3/8" [9.53 mm]內徑 LTH300，4448 N量程，中空型/螺栓預緊力傳感器，材質 - 17-4 PH S.S.不銹鋼，3/8" [9.53 mm]內徑，#29 AWG 4芯編織屏蔽聚四氟乙烯電纜，長度3米
- +
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
